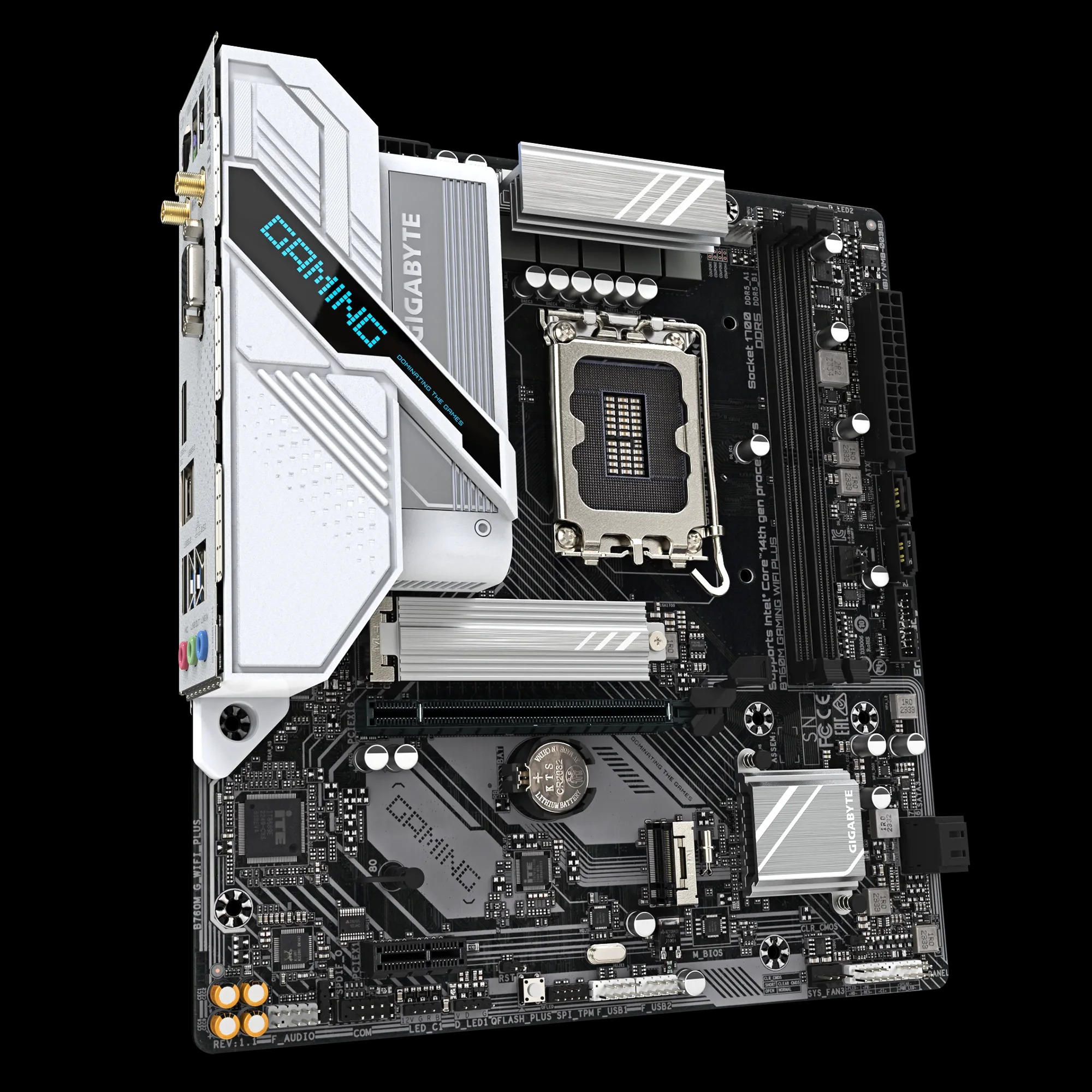

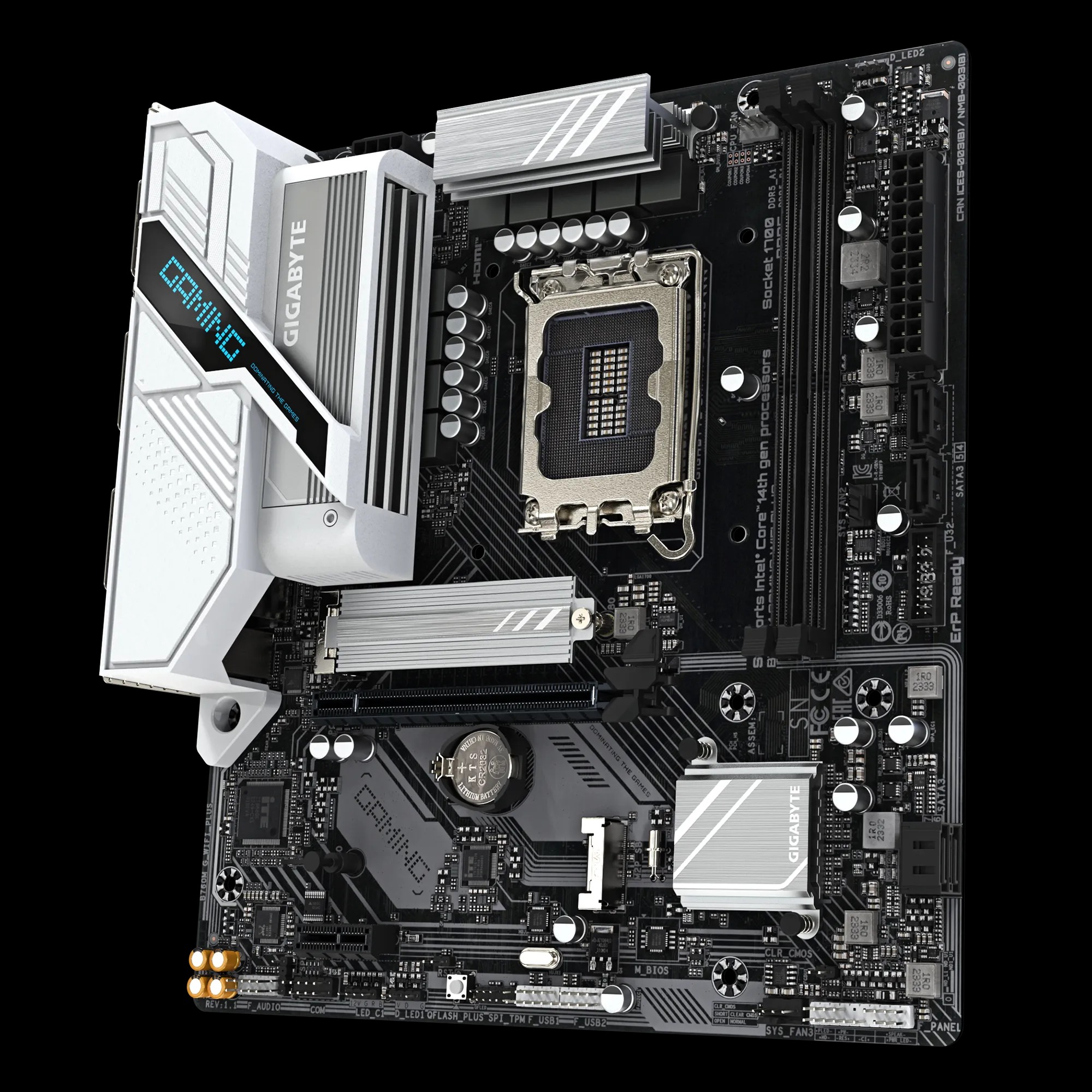

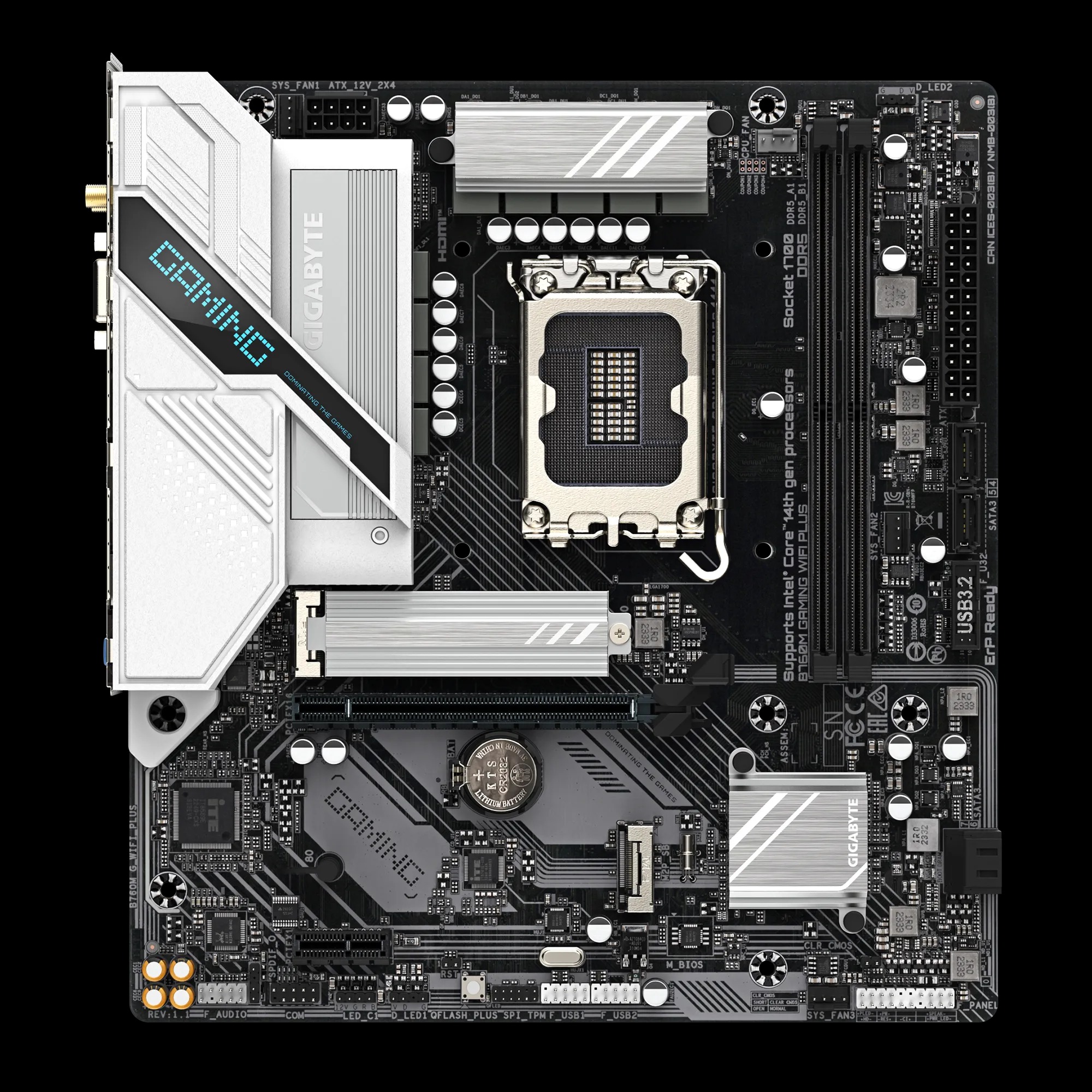

✨Mainboard Gigabyte B760M G WIFI PLUS Socket LGA1700 - Hàng Chính Hãng

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with...

Mua hàng tại Shopee giảm thêm 30%

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU

Chipset

Intel B760 Express Chipset

Bộ nhớ

14th and 13th Generation Intel Core i9/i7 Processors:

  • Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
  • Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Card đồ họa tích hợp

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

Âm thanh

Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

  • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel Wireless-AC 9560

  • WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.1
  • Support for 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)

Khe cắm mở rộng

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Giao diện lưu trữ

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

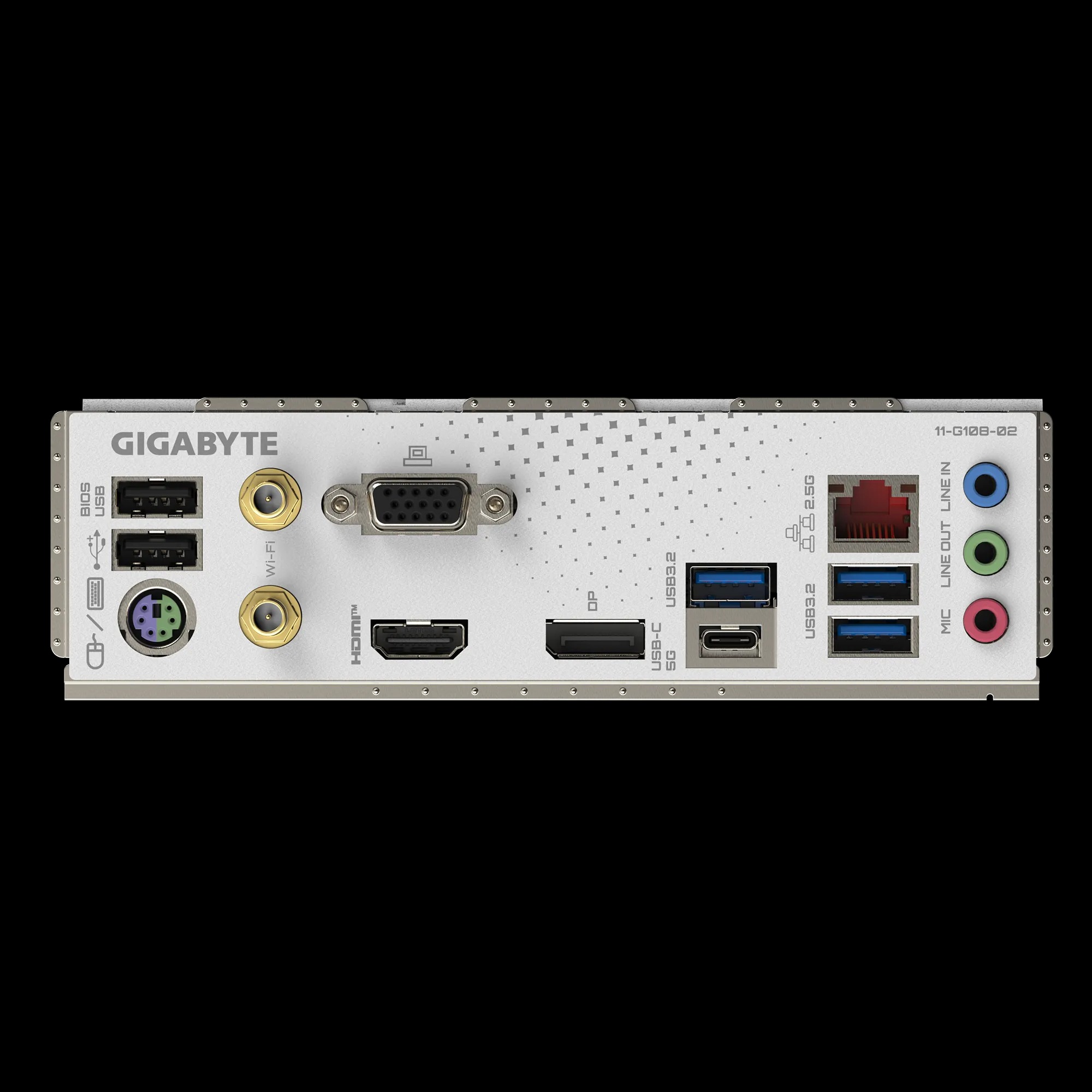

Kết nối bảng phía sau

2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) / (2T2R) 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks

Điều khiển I/O

iTE I/O Controller Chip

Theo dõi phần cứng

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control

  • Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

Support for GIGABYTE Control Center (GCC)

  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash Support for Q-Flash Plus

Gói phần mềm

Norton Internet Security (OEM version) LAN bandwidth management software

Hệ điều hành

Support for Windows 11 64-bit Support for Windows 10 64-bit

Hệ số khuôn

Micro ATX Form Factor; 24.4cm x 22.5cm
